rent: Oil Free Turbo Blower Aerzen 24/7 ready to install.

Oil Free Positive Displacement Blower

Volume flow:
30 to 15.000 m³/h

Differential pressure (Δp):
-500 to 1.000 mbar

Medium:
Air,

Neutral Gases

Conveying / Compression:
Oil-free

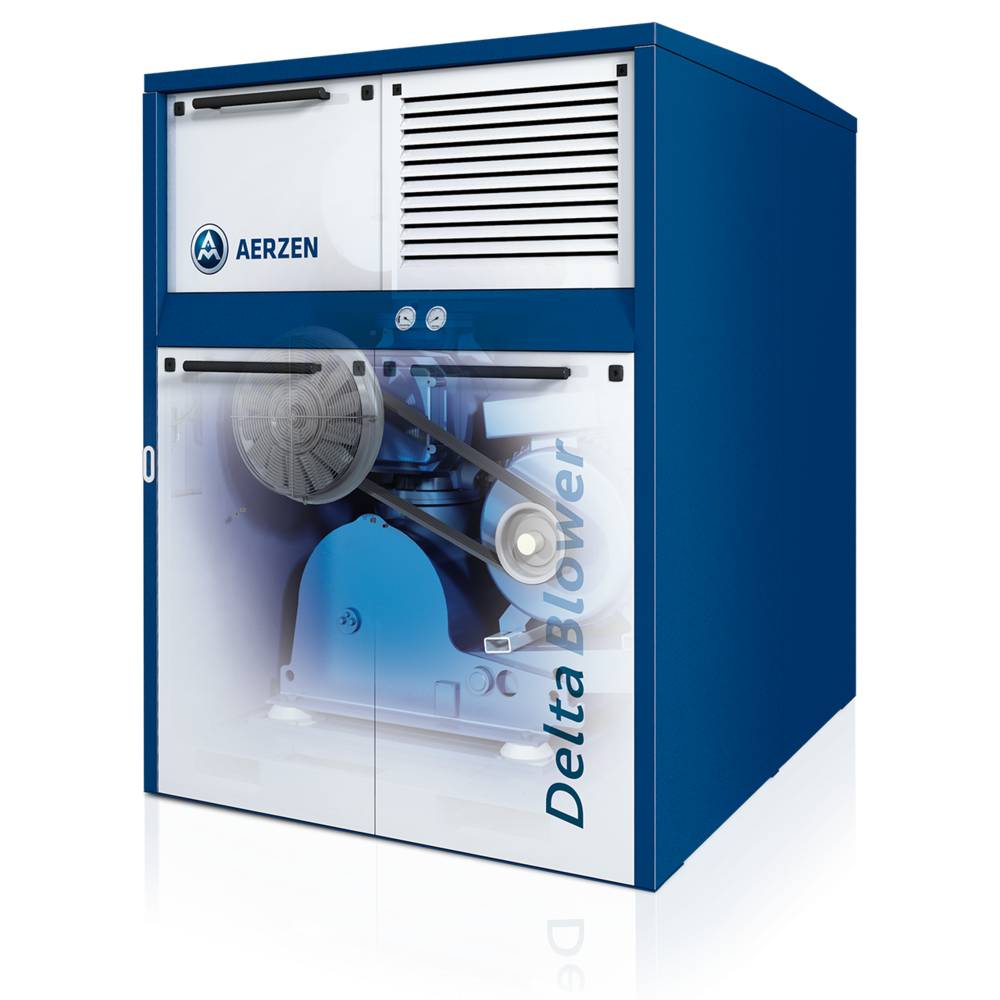

The advantages of AERZEN DELTA BLOWER at a glance:

Extremely robust and flexible blower package
Easy operation and low-maintenance design
Plug & play installation
Standard application for energy saving motors of class IE3
Low noise levels thanks to the machines considerable sound reduction features

Contact

The Universal Genius for Every Application
The versatile and compact Delta Blower units can be deployed in any climate zone on Earth. In the most challenging outdoor environments just as safely as in covered indoor spaces. They can be used as both standalone units or in complex assemblies. They are as reliable in earthquake zones as they are aboard ships or in other mobile applications.
IndustriesSewage treatment
Chemical and process technology
Glass and paper manufacturing
Food industry
Environmental technology
and many more



Negative pressure
Series	Performance data				Dimensions and weights
Series	Pressure difference, mbar	Volume flow*, m³/h	Motor power, kw	Sound pressure, max. db(A)	Width (A), mm	Depth (B), mm	Height (C), mm	Nominal size	Weight, kg
GM 3 S	-500	250	7.5	68	800	800	1.055	DN 50	212
GM 4 S	-500	340	7.5	70	925	1.135	1.280	DN 80	299
GM 7 L	-500	520	11	70	925	1.135	1.280	DN 80	304
GM 10 S / DN 80	-500	600	15	70	925	1.135	1.280	DN 80	328
GM 10 S / DN 100	-500	730	15	70	1.250	1.350	1.500	DN 100	496
GM 15 L	-500	1.080	22	73	1.250	1.350	1.500	DN 100	511
GM 25 S	-500	1.510	30	73	1.250	1.350	1.500	DN 125	567
GM 30 L	-500	2.120	45	75	1.500	1.800	1.978	DN 150	1.020
GM 35 S	-500	2.420	55	75	1.500	1.800	1.978	DN 150	1.110
GM 50 L	-500	3.450	75	78	1.700	2.055	2.111	DN 200	1.475
GM 60 S	-500	3.640	75	78	1.700	2.055	2.109	DN 200	1.605
GM 80 L	-500	5.150	110	80	1.900	2.671	2.344	DN 250	2.200
GM 90 S	-500	5.600	110	80	1.900	2.671	2.344	DN 250	2.270
GM 100 S	-500	6.600	110	80	1.900	2.200	2.308	DN 250	2.470
GM 130 L	-500	8.070	400	82	2.100	2.850	2.345	DN 300	3.410
GM 150 S	-500	9.700	400	82	2.100	2.850	2.345	DN 300	3.750
GM 220 L	-500	12.800	400	82	2.800	4.304	3.500	DN 400	8.240
GM 240 S	-500	15.000	400	80	2.800	4.304	3.500	DN 400	8.630

Positive pressure
Series	Performance data				Dimensions and weights
Series	Pressure difference, mbar	Volume flow*, m³/h	Motor power, kw	Sound pressure, max. db(A)	Width (A), mm	Depth (B), mm	Height (C), mm	Nominal size	Weight, kg
GM 3 S	1.000	240	11	70	800	800	1.055	DN 50	212
GM 4 S	1.000	334	15	70	925	1.135	1.280	DN 80	299
GM 7 L	700	488	15	70	925	1.135	1.280	DN 80	304
GM 10 S / DN 80	1.000	600	30	72	925	1.135	1.280	DN 80	328
GM 10 S / DN 100	1.000	684	30	72	1.250	1.350	1.500	DN 100	496
GM 15 L	700	1.020	30	73	1.250	1.350	1.500	DN 100	511
GM 25 S	1.000	1.446	55	73	1.250	1.350	1.500	DN 125	567
GM 30 L	700	2.058	75	75	1.500	1.800	1.900	DN 150	1.020
GM 35 S	1.000	2.388	90	75	1.500	1.800	1.900	DN 150	1.110
GM 50 L	700	3.288	90	76	1.700	2.055	2.111	DN 200	1.475
GM 60 S	1.000	3.528	132	78	1.700	2.055	2.111	DN 200	1.605
GM 80 L	700	4.968	160	80	1.900	2.200	2.308	DN 250	2.200
GM 90 S	1.000	5.352	200	81	1.900	2.200	2.308	DN 250	2.270
GM 100 S	1.000	6.288	250	82	1.900	2.200	2.308	DN 250	2.470
GM 130 L	700	7.920	250	84	2.100	2.850	2.345	DN 300	3.410
GM 150 S	1.000	9.000	355	84	2.100	2.850	2.345	DN 300	3.750
GM 220 L	600	12.570	315	84	2.800	4.304	3.500	DN 400	8.240
GM 240 S	800	14.640	500	86	2.800	4.304	3.500	DN 400	8.630

Contact Us

Visit AERZEN Rental website to find your contact and learn more about transforming your plant with our solutions.

By using advanced technologies from AERZEN and taking advantage of AERZEN Rental Solutions, wastewater treatment plants can enhance efficiency and contribute to a sustainable future. Join the revolution today!
