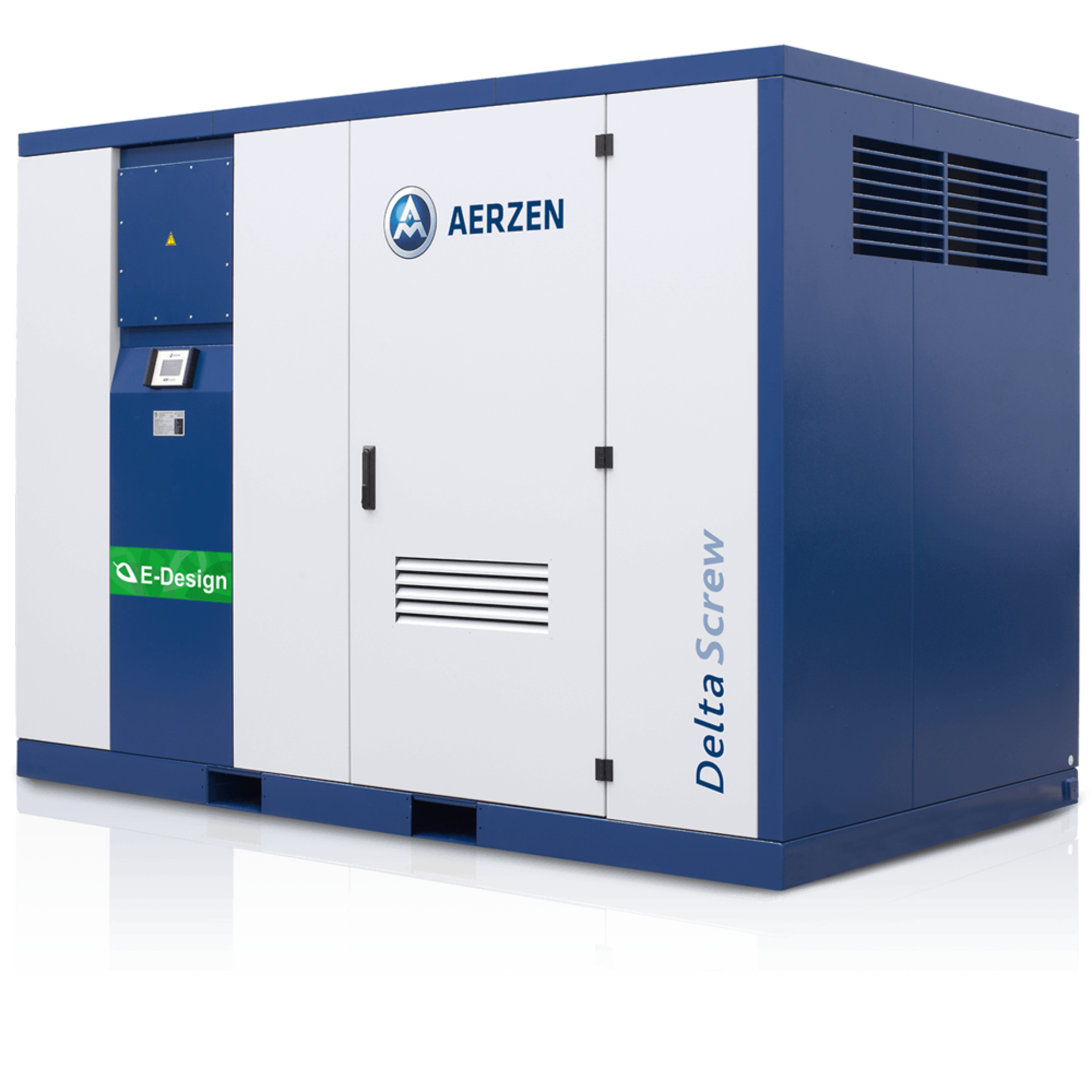

Screw Compressor Delta Screw E-Compressor with direct drive

AERZEN Delta Screw E-Compressor: Oil-Free Air Blowers in Thailand | AERZEN Rental Thailand

Why Choose AERZEN Delta Screw E-Compressors?

AERZEN Delta Screw E-Compressor is an industry-leading innovation in compression technology. With its direct drive precision and unparalleled customization, it offers exceptional efficiency and versatility for various industrial applications in Thailand.

Energy Savings: Up to 6% more efficient than conventional compressors, helping you reduce operational costs significantly.
Oil-Free Performance: 100% oil-free compression certified by ISO 8573-1 Class 0, ensuring the highest air purity standards for sensitive applications.
Durability: Built to handle extreme conditions with low maintenance needs, providing reliable performance over the long term.
Unmatched Versatility: Handles 350 to 15,000 m³/h of volume flow and differential pressures from -850 to 3,500 mbar, making it suitable for a wide range of applications.
Broad Adaptability: Perfect for air, neutral gases, and aggressive gases, offering flexibility across different industrial processes.

The AERZEN Delta Screw E-Compressor is designed to exceed expectations across industries and applications, making it the ideal choice for your oil-free air blower needs.

Versatile Applications

The Delta Screw E-Compressor is suitable for a wide range of industrial applications, including:

Pneumatic transport of powders, pellets, and ashes
Vacuum generation for glass manufacturing
Air/gas mixing systems
Instrument-grade air supply
Flue gas desulfurization for power plants
Fermentation and biogas production
Blast air for nonwoven fabric manufacturing

Its adaptability makes it a valuable asset in industries such as manufacturing, energy, pharmaceuticals, and more.

Technical Specifications

Below are the key technical specifications of the AERZEN Delta Screw E-Compressor:

Specification	Details
Volume Flow	350 to 15,000 m³/h
Differential Pressure	-850 to 3,500 mbar
Compression	Oil-Free (ISO 8573-1 Class 0)
Medium	Air, Neutral Gases, Aggressive Gases
Energy Efficiency	Up to 6% more efficient than conventional compressors

For a detailed list of all technical specifications, please click here.

Suitable for dry and clean compression of air and neutral gases.
A single series for all volume flows.

They are among the worlds best-selling compressors: the direct-drive units that bear the name Delta Screw. Why? Because there is probably no other compressor that so uncompromisingly fulfils even the most demanding client requirements. Because you can cover a very broad range of volume flows with a single machine. Because these compressors are most efficient. Because they are legendary for their operational availability and longevity. And finally, because these amazing all-rounders have a huge advantage: they are Made by AERZEN.

11 Models. All contingencies.

They operate reliably in all the worlds temperature zones, indoors and out, in mobile or stationary deployment. What makes the Delta Screw so flexible? 11 direct-drive machines. 2 compressor groups with the specialised AERZEN rotor profile. A choice of discharge port sizes in the cylinder for ideal internal compression. And an almost unlimited spectrum of possible adaptations and accessories. Designed for the compression of air, nitrogen, and other neutral gases, the Delta Screw compressors are perfect for almost any possible application. The spectrum of the extended Delta Screw series additionally includes 7 belt-driven compressor models for volume flows (actual delivery depends on intake parameters) from 120m³/h to 2,650m³/h.

Delta screw E-compressors. The savings will pay for the machine.

6% lower energy usage compared to conventional compressors the AERZEN E-class (VML 60 G5-E, VML 95 G5-E, VM 45 G5-E, VM 75 G5-E, VM 100 G5-E) is making a significant contribution to the realisation of legal and company energy savings programs. And with almost 90% of total costs taken up by energy, this means releasing serious potential that can be devoted to environmental protection, improved company liquidity, and reduced life-cycle costs.

Screw Compressor Delta Screw E-Compressor with direct drive Performances & dimensions

Delta Screw E-Compressor with direct drive — Performances & dimensions

Negative pressure
Series	Performance data				Dimensions and weights
Series	Pressure difference, mbar	Volume flow*, m³/h	Motor power, kw	Sound pressure, max. db(A)	Width (A), mm	Depth (B), mm	Height (C), mm	Nominal size	Weight, kg
VML 35 G5-E	-850	1.710	160	73	2.900	1.450	1.900	DN 150	2.000
VML 60 G5-E	-850	3.690	250	79	3.200	1.650	2.200	DN 200	3.100
VML 95 G5-E	-850	6.000	355	79	4.100	1.780	2.375	DN 250	4.400
VML 150	-850	8.220	560	84	5.300	2.300	2.500	DN 300	9.000
VML 250	-850	12.000	800	84	5.500	2.600	3.000	DN 400	11.600

Positive pressure
Series	Performance data				Dimensions and weights
Series	Pressure difference, mbar	Volume flow*, m³/h	Motor power, kw	Sound pressure, max. db(A)	Width (A), mm	Depth (B), mm	Height (C), mm	Nominal size	Weight, kg
VM 30 G5-E	3.500	2.040	160	74	2.900	1.450	1.900	DN 150	1.950
VML 35 G5-E	2.000	2.600	160	73	2.900	1.450	1.900	DN 150	2.000
VM 45 G5-E	3.500	3.250	250	75	3.200	1.650	2.200	DN 150	3.000
VML 60 G5-E	2.000	4.550	250	79	3.200	1.650	2.200	DN 200	3.100
VM 75 G5-E	3.500	4.780	400	76	4.100	1.780	2.375	DN 200	4.300
VM 85	3.500	6.760	560	82	4.500	1.800	2.320	DN 200	6.000
VML 95 G5-E	2.000	7.000	355	79	4.100	1.780	2.375	DN 250	4.400
VM 100 G5-E	3.500	7.620	630	87	5.400	2.240	2.466	DN 250	7.000
VM 140	3.500	10.700	800	83	5.250	2.200	2.870	DN 250	8.500
VML 150	2.000	10.630	560	84	5.300	2.300	2.500	DN 300	9.000
VML 250	2.000	15.000	800	83	5.500	2.600	3.000	DN 400	11.600

Visit AERZEN Rental website to find your contact and learn more about transforming your plant with our solutions.

By using advanced technologies from AERZEN and taking advantage of AERZEN Rental Solutions, wastewater treatment plants can enhance efficiency and contribute to a sustainable future. Join the revolution today!

Frequently Asked Questions

What is an Oil Free Air Blower?

An oil-free air blower is a device that compresses air without the use of oil in the compression chamber, ensuring the air remains free from oil contamination. This is essential for industries where air purity is critical, such as food and beverage, pharmaceuticals, and electronics.

Why choose AERZEN Delta Screw E-Compressor?

The AERZEN Delta Screw E-Compressor offers exceptional efficiency, durability, and versatility, making it an ideal choice for various industrial applications requiring oil-free air compression. Its energy-saving features and low maintenance needs provide long-term cost benefits.

What services does AERZEN Rental Thailand offer?

AERZEN Rental Thailand provides comprehensive solutions including Oil Free Air Rental, Industrial Blower Rental, and Compressor Rental services. We offer a range of equipment like Screw Blowers, Root Blowers, and Oil Free Air Compressors to meet your specific needs.

How does the Delta Screw E-Compressor contribute to sustainability?

By offering up to 6% more energy efficiency compared to conventional compressors, the Delta Screw E-Compressor reduces energy consumption and operational costs. Its oil-free operation eliminates the risk of oil contamination, contributing to a cleaner environment.
