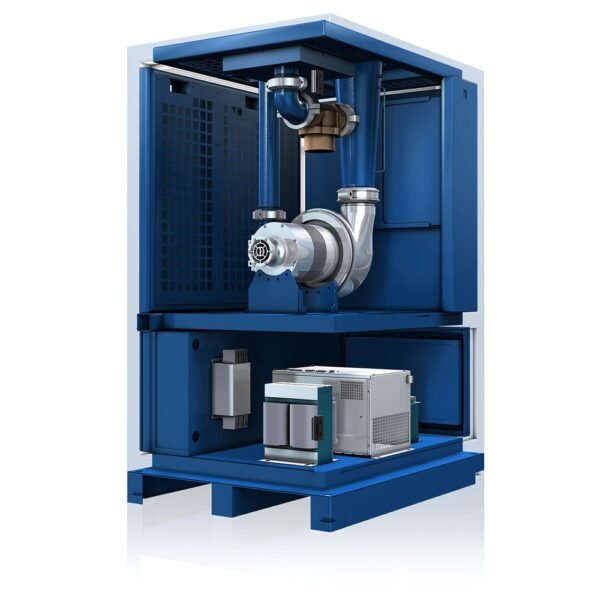

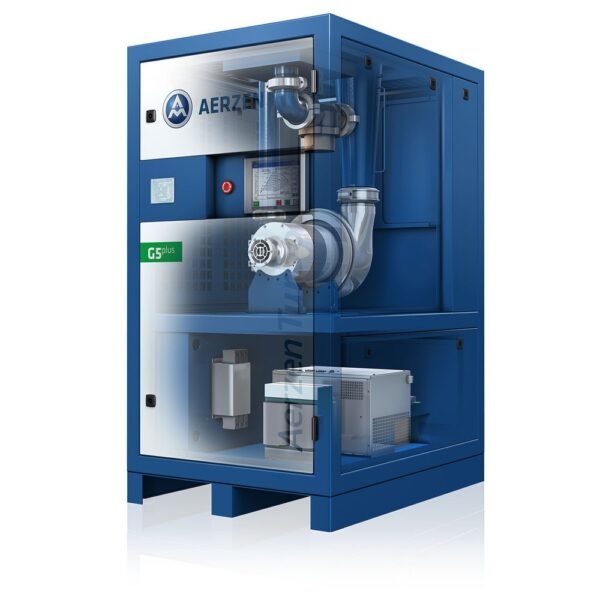

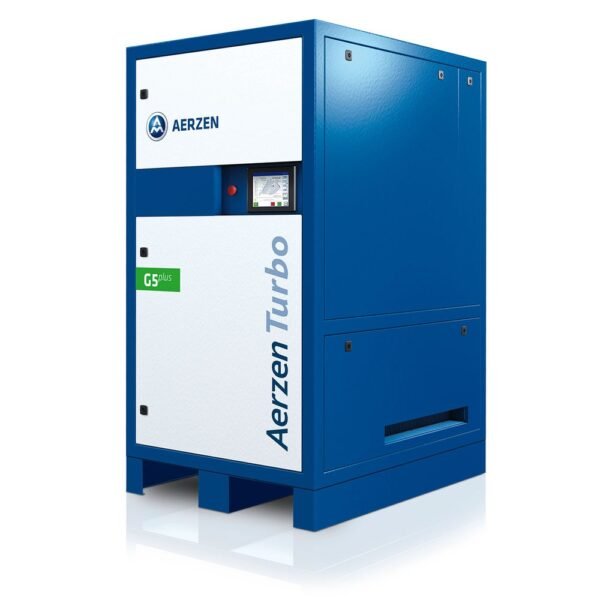

Oil Free Turbo Blowers Gen 5
Volume flow:
360 to 16.200 m3/h
Differential pressure (Δp):
600 to 1.000 mbar
Conveying / Compression:
Oil-free
The advantages of AERZEN Turbo Generation 5 at a glance:
- Maximum efficiency in aeration tanks
- Up to 30% energy savings
- Plug-and-play design
- Speed-controlled
- Low maintenance requirements
- Class 0 ISO 8573-1 oil-free air
Contact
Precise load cycle calibration: for a new level of efficiency in aeration tanks
- When you realize that energy consumption in conventional wastewater treatment plants can be up to 80% of total costs, then the impact becomes clear: every percentage point in savings counts. Both in terms of cost and the environment. The performance values for the Aerzen Turbo Generation 5 mean maximum efficiency in waste water tanks. In numbers: energy savings of up to 30%. And up to 80% operational efficiency. That is truly amazing practically revolutionary! AERZEN thinks that this is simply the most responsible way to manage resources in wastewater treatment plants.
Industries
- Sewage treatment
- Chemical and process technology
- Glass and paper manufacturing
- Food industry
- Environmental technology
- and many more
Applications
The Aerzen Turbo with air bearings, have exerted a major influence on technological progress. Particularly compact turbo package for medium and high volume flows. Lowest maintenance and noise emission, no vibrations and highest energy efficiency. Easy installation thanks to a plug-and-play package that integrates all components.
For maximum energy efficiency in wastewater treatment
Designed to handle unsolved energy problems.
- This is the key unit for more energy efficiency, as single or combination design and the power behind every municipal or industrial waste disposal facility: the Aerzen Turbo Generation 5. Unbeatable, AERZENs mix of roots blower, screw blower and turbo blower technology. Designed for large intake volume flows of between 3000 m³/h and 16,200 m³/h. Variable frequency controlled, 100% oil-free, and tailor-made for the most demanding applications in wastewater treatment. The powerful Turbo blowers from AERZEN will astound you with hitherto unknown savings. And delight you during normal operation with their minimal maintenance needs, easy handling, and robust nature. A typical AerzenTurbo.
The right solution for every application
AERZEN successfully introduced its innovative, air bearing turbo blower to the market in 2010. Today, more than 2500 installations worldwide attest to its superior reliability, and low energy and maintenance costs.
Aerzens’s turbo blowers are used for a wide range of different applications, including oxygen supply in the biological processes of wastewater treatment plants, fermentation in yeast production, providing oxidation air for lime and cement production, and many more..
The benefits of Aerzen Turbo Generation 5 at a glance:
- Energy savings of up to 30% in combination systems
- Up to 80% operational efficiency
- Minimal maintenance costs
- High degree of reliability and longevity
- 100% oil-free
Properties
There’s a lot to be said about the economical Turbo. We’ll make it brief here.
AERZEN has built turbo blowers since 1911. Over the years, weve continued to perfect these assemblies from a technological standpoint. Along the way, weve developed expertise that sets standards worldwide today. Its reflected in the performance characteristics, in every component, and in all the details of the newest Turbos. Discover the new Turbo Generation 5 and Generation 5plus.
100% Turbo
- For small and large volume flows
- From 360 m³/h to 16,200 m³/h
- Speed-controled
- 100% oil-free
Efficient peak values
- Increase in energy efficiency by up to 10% compared to conventional turbo technology
- Control range of 40% – 100%
- Highly efficient individual components
Innovation driver: the permanent magnet motor
- Extremely high-efficiency and energy-saving permanent magnet motor
- Requires no additional energy to magnetize the rotor
- Outstanding efficiency of an almost constant 96%, even in partial load operation
Innovative AERZEN air foil bearings
- Forward-looking double coating made of Teflon and graphite
- Theoretical bearing lifetime of >80,000 operating hours, regardless of stop and start cycles (>80 starts/stops per hour)
- Resistant to pressure peaks (for example, SBR processes, pulsations caused by positive displacement machines) and compressor surge
- Highly functional without necessary accessories (for example, electric control system, back up bearings, auxiliary electronics such as battery systems)
- Highly reliable operation even during voltage fluctuations and power supply failures
- 100% maintenance free
